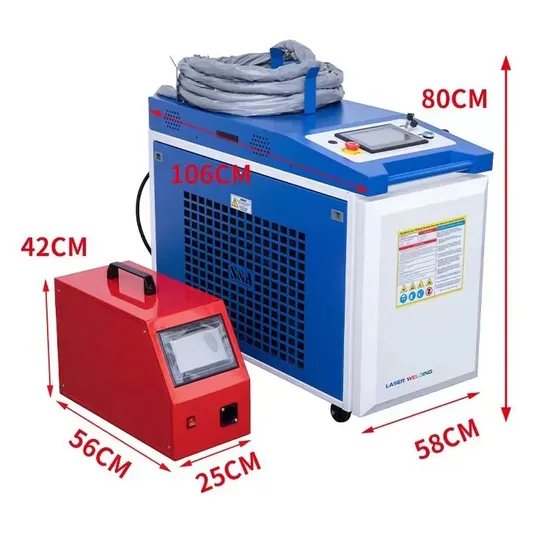

Portable Handheld Fiber Laser Metal Welding Machine with 1kw 1.5kw 2kw 3kw 1000W 1500W 2000W 3000W Raycus Max Jpt

Basic Info

Model NO.	KW-M
Technical Class	Continuous Wave Laser
Control	Automatic
Power Density	Heat Conduct Welding
Laser Classification	Optical Fiber Laser
Type	Laser Mold Welding Machine
Model	Kw-M
Production Name	3 in 1 Fiber Laser Welding Machine
Laser Type	Fiber Laser
Cooling Type	Water Chiller
Auto Wire Feeder	Standard
Control System	Chaoqiang, Qilin
Laser Power	1kw 1.5kw 2kw 3kw
Laser Source	Raycus / Maxx
Laser Head	Chaoqiang, Qilin
Cleaning Width	10~40mm
Color	Blue White
Water Chiller	S&a
Functions	Cutting, Cleaning, Welding
Working Mode	DOT/Line/Circle
Spot Size (mm)	0.2-5mm Adjustable
Transport Package	Wooden Box
Specification	1300*600*1100mm
Trademark	KNOPPO
Origin	China
HS Code	8456110090
Production Capacity	500 Sets/Month

Packaging & Delivery

Package size per unit product 120.00cm * 70.00cm * 100.00cm Gross weight per unit product 200.000kg

Product Description

Product Description

APPLICATION :3 In 1 Handheld laser welding machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, including copper - brass, titanium - molybdenum, titanium - gold, nickel - copper, and so on.

3 In 1 Handheld laser welding machine is widely used in the kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, battery manufacturing, craft gifts, household and other industries. Also can clean rust , paint , coating and oil etc on metal .

Detailed Photos

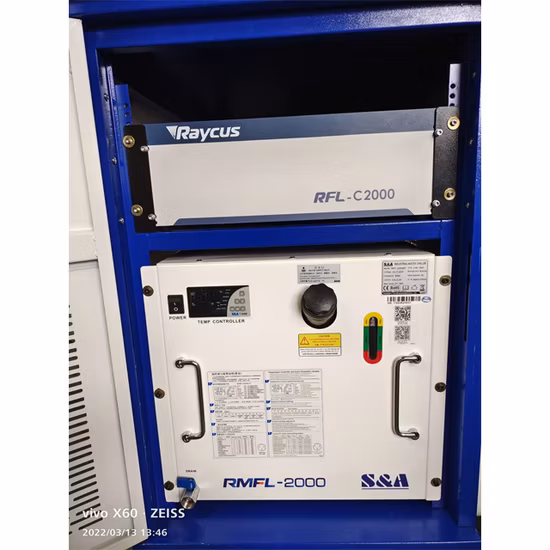

Raycus Laser Source and S&A Water Chiller

Raycus is largest manufacturer of laser source in China , can weld carbon steel , stainless steel and aluminium etc . Good qualityand long life . Suitablef for 24 hours continuous working.

Relfar Laser Welding Head

With hot temperature alarm and double protections lens , very sale . small and light , easy to operation.

Relfar Control Sytsem

Different welding or cleaning parameters is saved on system , when you weld metal , you need only choose it . Also support multi languages , such as English , Polish , Spainish , Russian , Korean , Japanese , Portugal etc .

France Schineider Electric Parts

European CE standard , good quality and long lifetime .

How to change welding to cleaning ?
laser cleaning parts ( nozzle and lens ) will be sent with machine , you need only change welding nozzle and lens to cleaning nozzle and lens . then change welding mode to cleaning mode on system .

Product Parameters

No.	Model	KW-M
I.Laser source		Raycus / MAX	Raycus / MAX	Raycus / MAX
1.	Output Power (w)	1000W 1500W 2000W 3000W
2.	Center wavelength	1080nm ±5
3.	Fiber Cable length	10m
II.Water Cooling		1.5P	2P	2.5P
III.Laser head
1	Spot size (mm)	1.5/1.8/2.0 (XINGHONG)
		0.2-5mm adjustable (Relfar / Qilin)
		0-4mm adjustable (WSX)
2	Working Mode	"O"(XINGHONG)
		dot/line/circle (Relfar / Qilin)
		"Z"(WSX)
3	Protective lens	D20*2
4	Auto Wire-feeder	Standard
IV. Gas		N2/Ar
V.Total Power Consumption		7.5KW	8.5KW	10KW
VI.Voltage		220±20% VAC 50/60Hz	380±20% V AC 50/60Hz
VII.Dimension (CM)		62.5*174.6*109	62.5*175.6*124
VIII. Cleaning Width		10~40mm

Packaging & Shipping

Wooden box package , safedelivery

Certifications

Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .

After Sales Service

*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.

*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
